10000 Litre Water Tank Stand Design in Nairobi
A professionally designed 10000 litre water tank stand is essential for safe water storage, proper water pressure, and long-term structural stability. Because a full 10000 litre water tank weighs approximately ten tonnes excluding the tank weight itself, the supporting structure must be extremely strong, well reinforced, and professionally fabricated.
Across Nairobi, elevated water tank stands are widely used in residential buildings, apartments, schools, farms, hotels, factories, and commercial projects. A strong steel water tank stand improves gravity-fed water flow while ensuring safe support for heavy water loads.
Professional design, quality structural steel, strong welding, and reinforced foundations are all important for ensuring durability and safety.
What Is a 10000 Litre Water Tank Stand?
A 10000 litre water tank stand is a heavy-duty steel structure designed to elevate and support a 10000 litre water tank above ground level. The raised height improves water pressure and allows water to flow efficiently using gravity.
These structures are commonly used for:
- Residential apartments
- Schools
- Hotels
- Commercial buildings
- Farms
- Industrial facilities
- Construction projects
Because of the massive weight involved, professional fabrication is extremely important.
Importance of a Strong Water Tank Stand
Water tanks carry enormous weight when full.
Approximate Weight
- 10000 litres of water = approximately 10,000 kilograms
- Equivalent to approximately 10 tonnes
When the tank weight and environmental pressure are added, the structure must safely handle a very heavy load.
Benefits of a Strong Structure
- Improved safety
- Better water pressure
- Long-term durability
- Reduced maintenance costs
- Better load stability
Recommended Height for a 10000 Litre Tank Stand
The ideal stand height depends on water pressure requirements and project needs.
Common Height Options
Typical heights include:
- 9 feet
- 12 feet
- 15 feet
- 20 feet
Taller structures improve water pressure but require stronger reinforcement and larger foundations.
Recommended Steel Materials
Strong steel materials are essential for handling the heavy load safely.
Main Vertical Legs
Recommended materials include:
- 100mm × 100mm box section
- 120mm × 120mm box section
- Heavy-duty structural steel tubing
Horizontal Support Beams
These help distribute the tank weight evenly.
Common materials include:
- 75mm × 75mm box section
- Structural steel beams
- Heavy-duty angle iron
Cross Bracing
Cross bracing improves structural rigidity and stability.
Common materials include:
- 50mm × 50mm angle iron
- Steel flat bars
- Reinforced steel tubing
Top Platform Support
The top platform must support the full tank base evenly.
Materials often include:
- Steel channels
- Reinforced steel beams
- Heavy-duty steel plates
Recommended Platform Size
The exact size depends on the tank dimensions.
Typical platform sizes include:
- 3m × 3m
- 3.5m × 3.5m
The platform should always be larger than the tank base for proper support.
Structural Reinforcement Requirements
Professional reinforcement is extremely important for large-capacity tanks.
Cross Bracing Design
Cross bracing helps prevent:
- Structural shaking
- Side movement
- Wind instability
- Structural twisting
Tall structures require additional cross reinforcement.
Load Distribution
Proper design distributes the heavy water load evenly across all support points.
Poor load distribution may cause:
- Bending
- Cracking
- Structural failure
- Foundation damage
Foundation Requirements
A strong reinforced concrete foundation is essential.
Reinforced Concrete Footings
The foundation must:
- Support over 10 tonnes safely
- Resist movement
- Prevent sinking
- Handle environmental pressure
Soil Assessment
Weak soil conditions may require deeper or wider concrete foundations.
Welding Requirements
Professional welding is one of the most important parts of tank stand fabrication.
Structural Welding
Strong welds improve:
- Structural strength
- Durability
- Reinforcement stability
- Long-term reliability
Risks of Poor Welding
Weak welding may cause:
- Cracks
- Joint failure
- Structural collapse
- Expensive repairs
Professional welders ensure safe and durable fabrication.
Protective Coating and Rust Prevention
Steel water tank stands are exposed to weather and moisture.
Anti-Rust Primer
Protective primer helps reduce corrosion.
Protective Paint
Industrial-grade paint improves weather resistance and lifespan.
Regular Maintenance
Routine inspection and repainting improve durability.
Types of 10000 Litre Water Tank Stand Designs
Different projects require different structural designs.
Four-Leg Tank Stand Design
This is one of the most common designs.
Features include:
- Four heavy-duty support legs
- Cross bracing
- Reinforced top platform
- Concrete anchoring
Suitable for homes, schools, and small commercial projects.
Elevated Water Tower Design
Tall tower structures improve water pressure significantly.
Commonly used for:
- Apartment buildings
- Hotels
- Farms
- Commercial buildings
Tall towers require stronger reinforcement and deeper foundations.
Heavy-Duty Industrial Tank Stand
Industrial projects may require:
- Additional support legs
- Reinforced steel beams
- Multi-tank support systems
- Heavy structural fabrication
These systems are designed for large-scale water storage.
Common Uses of 10000 Litre Tank Stands
These structures are widely used across Nairobi.
Residential Apartments
Used for reliable water supply and improved pressure.
Schools and Institutions
Provide water storage for kitchens, washrooms, and general use.
Farms and Agriculture
Support irrigation systems and livestock water supply.
Hotels and Commercial Buildings
Provide backup water supply and stable pressure.
Industrial Facilities
Support production systems and operational water requirements.
Advantages of Elevated Water Tank Systems
Improved Water Pressure
Higher elevation improves gravity-fed flow.
Reliable Water Storage
Provides backup during shortages and interruptions.
Efficient Water Distribution
Supports consistent water flow throughout buildings.
Better Use of Space
Elevated systems free up ground space.
Safety Considerations
Safety is extremely important for large-capacity tank stands.
Proper Structural Design
The structure must match the tank load and intended height.
Strong Steel Materials
Undersized materials may become dangerous.
Wind Resistance
Tall structures must resist strong environmental forces.
Secure Foundation Anchoring
Proper anchoring improves structural stability.
Professional Welding
Strong welds improve safety and reliability.
Maintenance of Water Tank Stands
Regular maintenance helps improve lifespan and safety.
Inspect for Rust
Remove corrosion and repaint affected areas.
Check Weld Joints
Inspect for cracks or structural weakness.
Inspect Structural Alignment
Ensure the stand remains stable and level.
Foundation Inspection
Check for cracks or movement in the concrete base.
Fabrication Process
Professional fabrication normally includes:
- Site inspection
- Structural measurements
- Material selection
- Steel cutting and preparation
- Welding and reinforcement
- Surface finishing
- Transportation and installation
- Final structural inspection
Approximate Cost of a 10000 Litre Tank Stand in Nairobi
The cost depends on:
- Stand height
- Steel thickness
- Material prices
- Foundation requirements
- Fabrication complexity
- Transport and installation
Approximate costs in Nairobi may range between:
- KSh 120,000 to KSh 300,000 or more
Heavy-duty and taller structures generally require more steel and reinforcement.

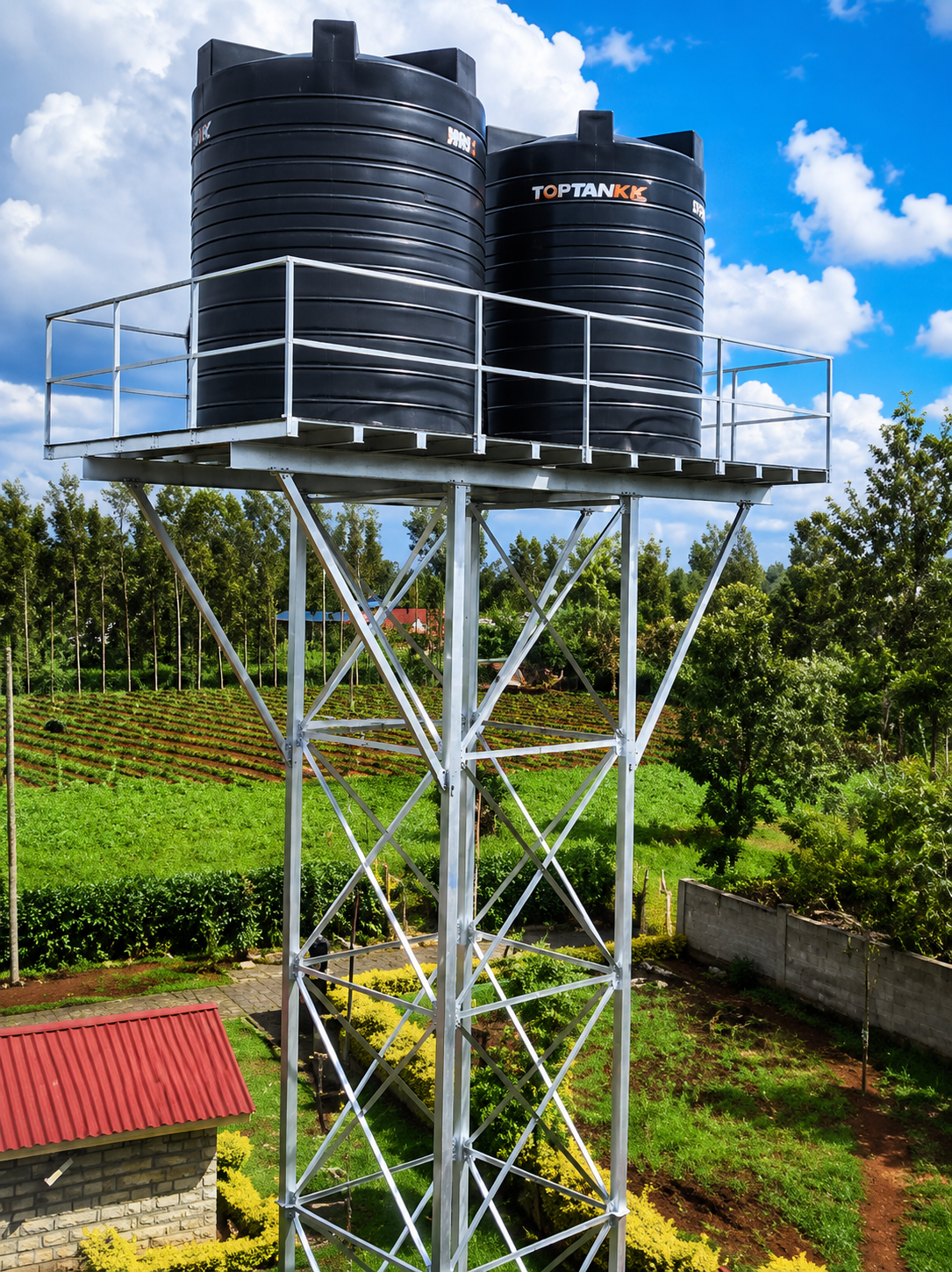

10000 Litre Water Tank Stand Design Examples
Conclusion
A professionally fabricated 10000 litre water tank stand is essential for safe and reliable water storage. Because the structure supports approximately ten tonnes of water weight, strong steel fabrication, proper reinforcement, quality welding, and reinforced concrete foundations are extremely important.
Whether for residential apartments, schools, farms, commercial buildings, or industrial projects, elevated tank stands improve water pressure, provide reliable storage, and ensure long-term structural durability.
Professional fabrication and proper structural design help ensure safety, reduce maintenance costs, and improve the overall performance of the water storage system.
