5000 Litre Water Tank Stand Design in Nairobi
Professional 5000 litre water tank stand design in Nairobi by Gamun Engineering Solutions. Heavy-duty steel tank stands, elevated water towers, reinforced structural fabrication, welded tank platforms, and durable water storage support systems for homes, farms, schools, apartments, and commercial buildings.
A professionally fabricated 5000 litre water tank stand is essential for safe water storage, improved water pressure, and reliable structural support. Water tanks become extremely heavy when full, which means the supporting structure must be designed using strong steel materials, proper reinforcement, and professional welding techniques.
A full 5000 litre water tank weighs approximately five tonnes excluding the tank weight itself. Because of this heavy load, proper fabrication and structural engineering are extremely important. Across Nairobi and many parts of Kenya, elevated water tank stands are commonly used in homes, apartments, schools, farms, hotels, construction sites, and industrial facilities because they improve water distribution and provide reliable backup water storage.
Gamun Engineering Solutions provides professional fabrication of durable and reinforced water tank stands designed for long-term safety and performance.
What Is a 5000 Litre Water Tank Stand?
A 5000 litre water tank stand is a heavy-duty steel structure designed to elevate and support a 5000 litre water tank above ground level. Elevated tank systems improve water pressure by allowing water to flow naturally using gravity.
These stands are commonly used for:
- Residential homes
- Apartment buildings
- Schools
- Farms
- Hotels
- Commercial buildings
- Construction projects
A properly fabricated stand ensures the tank remains stable and secure under heavy water loads.
Importance of Strong Tank Stand Fabrication
Water tanks carry enormous weight when filled with water.
Approximate Weight
- 5000 litres of water = approximately 5,000 kilograms
- Equivalent to approximately 5 tonnes
The stand must safely support this weight while resisting environmental pressure and structural movement.
Benefits of a Strong Tank Stand
- Improved safety
- Better water pressure
- Long-term durability
- Reduced maintenance costs
- Better load distribution
Professional fabrication reduces the risk of collapse or structural failure.
Recommended Height for a 5000 Litre Tank Stand
The ideal stand height depends on water pressure requirements and available space.
Common Height Options
Typical heights include:
- 6 feet
- 9 feet
- 12 feet
- 15 feet
Taller stands improve gravity-fed water pressure but require stronger reinforcement and foundations.
Materials Used for 5000 Litre Tank Stand Fabrication
Strong structural steel is important for handling heavy water loads safely.
Main Vertical Support Legs
Common materials include:
- 75mm × 75mm box section
- 100mm × 100mm box section
- Heavy-duty structural steel tubing
Horizontal Support Beams
Support beams distribute the tank weight evenly.
Common materials include:
- 50mm × 50mm box section
- Structural steel channels
- Reinforced angle iron
Cross Bracing
Cross bracing improves stability and wind resistance.
Common materials include:
- Angle iron
- Steel flat bars
- Structural steel tubing
Top Platform
The top platform supports the entire tank base evenly.
The platform must be reinforced to prevent bending or uneven pressure.
Recommended Platform Size
The platform size depends on the tank dimensions.
Typical platform sizes include:
- 2.5m × 2.5m
- 3m × 3m
The platform should always provide enough support for the tank base.
Structural Reinforcement Requirements
Professional reinforcement is important for structural safety and durability.
Cross Bracing Design
Cross bracing helps prevent:
- Side movement
- Structural shaking
- Twisting
- Wind instability
Tall structures require additional reinforcement.
Load Distribution
The structure must distribute the heavy water load evenly across all support points.
Poor load distribution may cause:
- Bending
- Structural cracks
- Foundation damage
- Structural failure
Foundation Requirements
Strong reinforced concrete foundations are essential.
Reinforced Concrete Base
The foundation must safely support the full water load and structural weight.
Soil Assessment
Weak soil conditions may require larger or deeper foundations for additional support.
Importance of Professional Welding
Professional welding is one of the most important parts of tank stand fabrication.
Benefits of Strong Welding
- Improved structural strength
- Better durability
- Strong reinforced joints
- Long-term reliability
Risks of Poor Welding
Weak welding may cause:
- Cracks
- Joint failure
- Structural instability
- Tank collapse
Professional welding ensures safe and durable fabrication.
Protective Coating and Rust Prevention
Steel structures are exposed to weather conditions and moisture.
Anti-Rust Primer
Protective primer reduces corrosion.
Protective Paint
Industrial-grade paint improves weather resistance and lifespan.
Regular Maintenance
Routine inspection and repainting improve long-term durability.
Types of 5000 Litre Water Tank Stand Designs
Different projects require different structural designs.
Four-Leg Tank Stand Design
This is one of the most common tank stand designs.
Features include:
- Four heavy-duty support legs
- Cross bracing
- Reinforced top platform
- Concrete anchoring
Suitable for homes, schools, and small commercial projects.
Elevated Water Tower Design
Elevated water towers improve water pressure significantly.
Commonly used for:
- Apartments
- Hotels
- Farms
- Commercial buildings
Tall towers require stronger reinforcement and deeper foundations.
Heavy-Duty Industrial Tank Stand
Industrial projects may require:
- Additional support legs
- Reinforced steel beams
- Multi-tank support systems
- Heavy structural fabrication
These systems are designed for larger water demands.
Common Uses of 5000 Litre Tank Stands
5000 litre tank stands are widely used across Kenya.
Residential Homes
Used for reliable household water supply and backup storage.
Schools and Institutions
Provide water storage for kitchens, washrooms, and cleaning systems.
Farms and Agriculture
Support irrigation and livestock water systems.
Hotels and Commercial Buildings
Provide stable water pressure and backup storage.
Construction Sites
Supply water for construction activities and workers.
Advantages of Elevated Water Tank Systems
Improved Water Pressure
Higher elevation improves gravity-fed water flow.
Reliable Water Storage
Provides backup water during shortages.
Better Space Utilization
Elevated systems free up ground space.
Reduced Pump Usage
Gravity-fed systems help reduce electricity costs.
Safety Considerations
Safety should always be the highest priority.
Proper Structural Design
The structure must match the tank size and intended height.
Strong Steel Materials
Weak materials may become dangerous under heavy loads.
Wind Resistance
Tall towers must resist environmental pressure safely.
Secure Foundation Anchoring
Proper anchoring improves structural stability.
Professional Welding
Strong welding improves long-term reliability and safety.
Maintenance of Water Tank Stands
Regular maintenance improves structural lifespan.
Rust Inspection
Remove corrosion and repaint affected areas.
Weld Inspection
Inspect joints regularly for cracks or weakness.
Structural Alignment
Ensure the stand remains stable and level.
Foundation Inspection
Check the concrete base for cracks or movement.
Fabrication Process
Professional fabrication normally includes:
- Site assessment
- Structural measurements
- Material selection
- Steel cutting and preparation
- Welding and reinforcement
- Surface finishing
- Transportation and installation
- Final structural inspection
Approximate Cost of a 5000 Litre Tank Stand in Nairobi
The cost depends on several factors including:
- Stand height
- Steel thickness
- Material prices
- Foundation requirements
- Fabrication complexity
- Transport and installation
Approximate fabrication costs may range between:
- KSh 70,000 to KSh 180,000 or more
Heavy-duty and taller structures generally require more steel and reinforcement.
Why Choose Gamun Engineering Solutions?
Gamun Engineering Solutions provides professional water tank stand fabrication with focus on:
- Strong structural steel fabrication
- Professional welding
- Durable support structures
- Quality materials
- Clean finishing
- Reliable workmanship
Every project is fabricated with attention to structural safety and long-term performance.

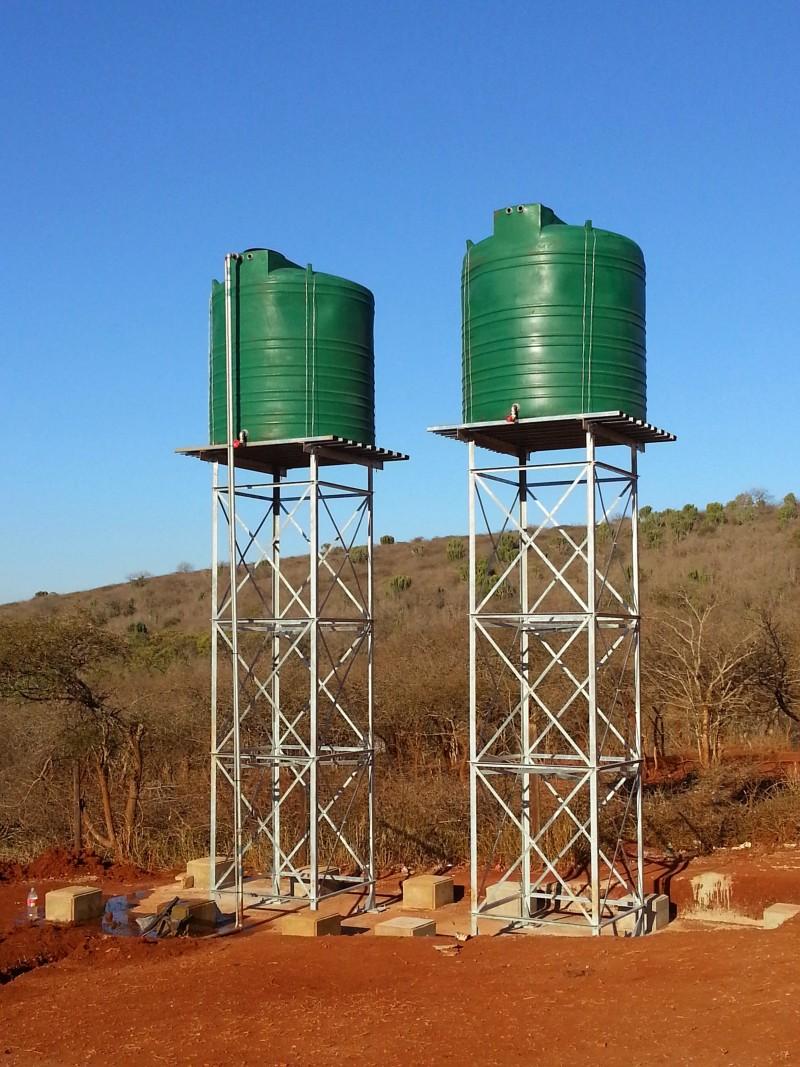

5000 Litre Water Tank Stand Design Examples
Conclusion
A professionally fabricated 5000 litre water tank stand is essential for safe and reliable water storage. Because the structure supports approximately five tonnes of water weight, strong steel fabrication, reinforced structural design, quality welding, and proper concrete foundations are extremely important.
Whether for homes, schools, farms, hotels, commercial buildings, or construction projects, elevated tank stands improve water pressure, increase storage reliability, and provide dependable long-term performance.
Gamun Engineering Solutions provides durable and professionally fabricated tank stands designed to meet residential, commercial, and industrial water storage needs safely and efficiently.
